ENGINEERED PERIMETER SYSTEMS
2DG Twin Wire Mesh Fence
2D Metal Fence Mesh & Profiled Posts B
Overview
Constructed with cold-formed I-shaped posts and 2D double horizontal wire welded mesh, this fence features a simple and elegant design with dynamic, smooth lines. The integrated design of the post connects to the mesh through dedicated interlocks and anti-theft bolts, allowing the system to adapt seamlessly to uneven terrain and installation at various angles. The product supports both push-type installation and a two-step installation process where posts are installed first, followed by the mesh, ensuring convenience and efficiency.
Features
Secure
The visual appearance on both sides of the fence is uniform and consistent.
Reinforced posts are securely connected to the mesh using anti-tamper connectors, providing strong anti-theft functionality.
The overall design eliminates focal points, delivering superior anti-climbing performance.
Durable
The combination of hot-dip galvanized steel and high-adhesion electrostatic polyester powder coating ensures exceptional corrosion resistance, resulting in a long-lasting product.
Practical
Adapts easily to uneven terrain and supports installation at various angles.
Simple to install, user-friendly, and highly cost-effective.
Mesh
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 1430/1630/1830/2030/2230/2430 |
| Mesh Width(mm) | 2500/3000 |
| Wire Diameter(mm) | Ø6.0+Ø5.0+Ø6.0/Ø8.0+Ø6.0+Ø8.0 |
| Vertical Wire Spacing(mm) | 50/55/65 |
| Horizontal wire spacing (mm) | 200 |
| Material | Q195 |
| Zn coating (g/㎡) | 80-120 |
| Color | RAL Color Series |
Post
| Name | Parameter |
|---|---|
| Size(mm) | 54.4 * 100 |
| Thickness(mm) | 1.5/2.0 |
| Height | 1000-3000 |
| Material | Q235/DC51D |
| Zn coating | 80-120 g/㎡ |
| Color | RAL Color Series |
| Cover | ABS |
Connection
The integrated design of the post is connected to the mesh with dedicated interlocks and anti-theft bolts, which has strong anti-theft function.
Surface Technology
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m², and the outer surface is coated with electrostatic polyester powder, achieving a coating thickness of 100-120μm. Over 200 colors are available in the RAL color series.
Additionally, the entire component is fully hot-dip galvanized with a zinc coating of 550g/m² for enhanced durability and corrosion resistance.
Download Documents
Product projects
2DG project application 1
2DG project application 2
2DG project application 3
2DG project application 4
2DG project application 5
2DG project application 6
Industrial Case Study-Auto Industry Fencing Project Solutions
Case Study More Industries Fencing Project Solutions
Case Study More Industries Fencing Project Solutions

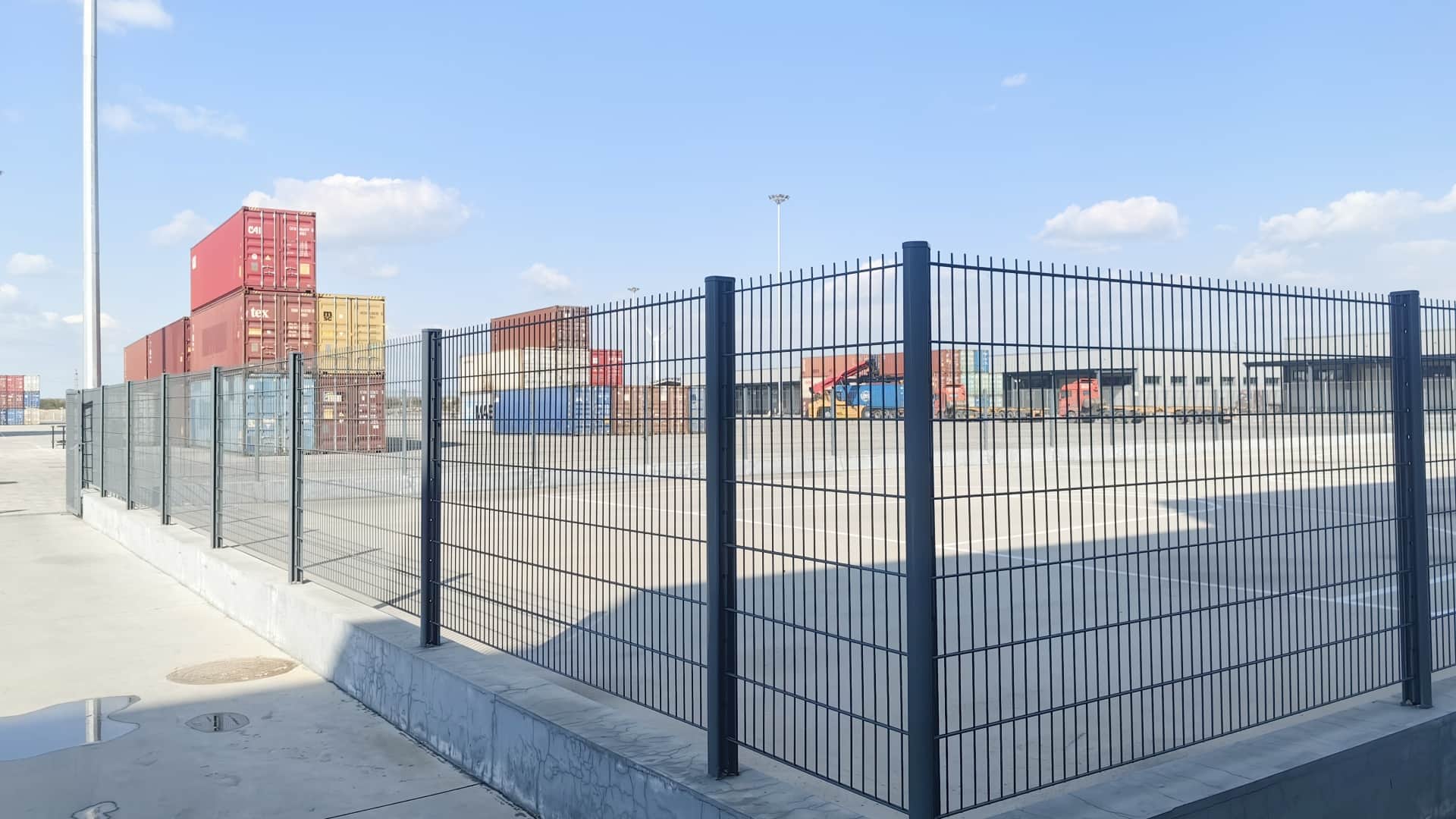

Industrial Case Study-Logistics Industry Fencing Project Solutions
Industrial Case Study-Logistics Industry Fencing Project Solutions

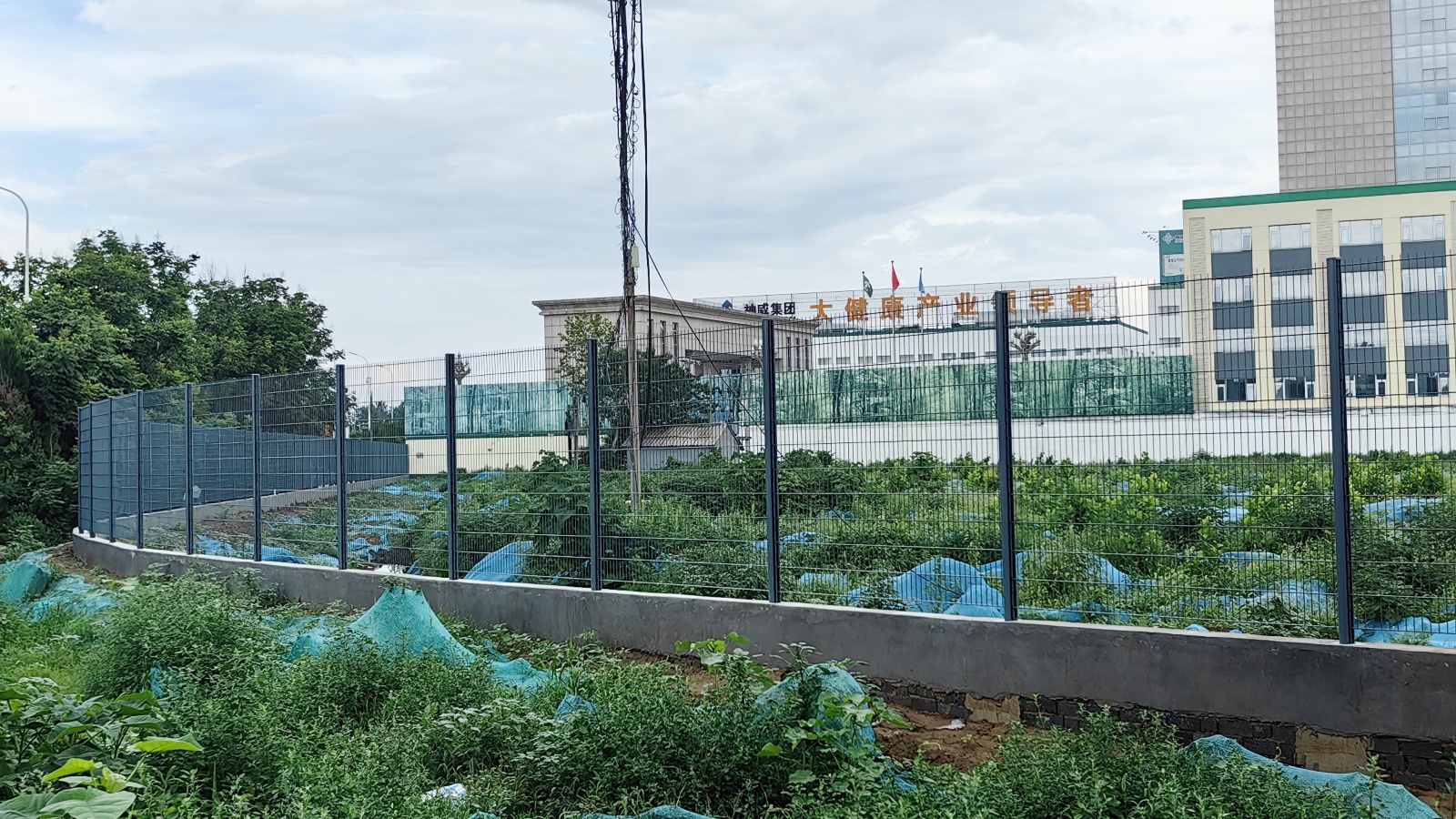

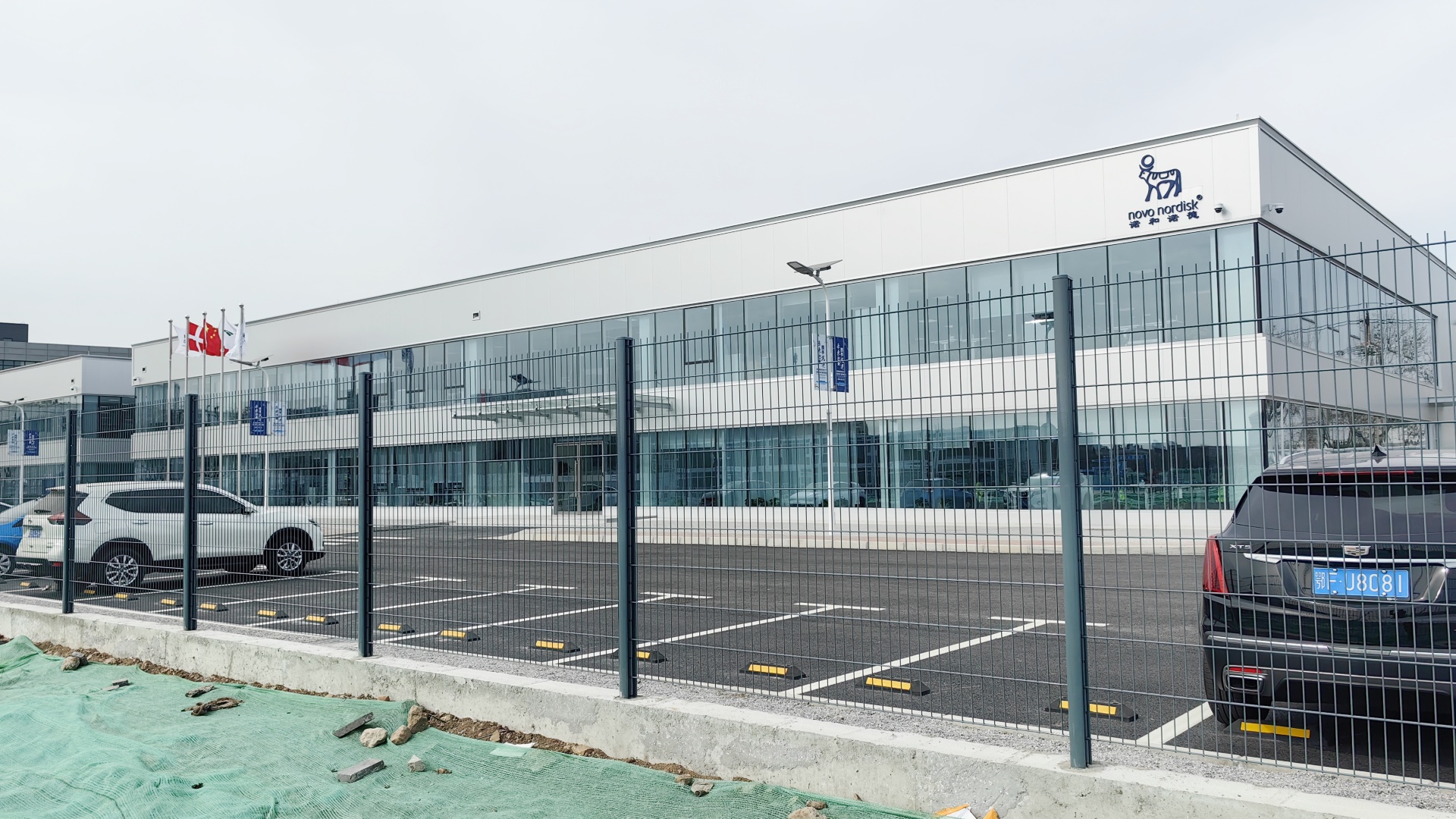

Industrial Case Study-Pharmaceutical Industry Fencing Project Solutions
